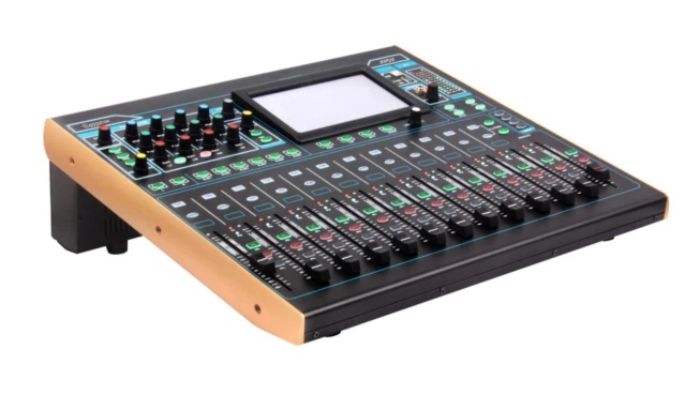

DSP series digital mixer

20 signal inputs (12 MIC inputs, two sets of stereo)Input Processing - Input gain adjustment (electronic gain) preamplification, high and low pass filtering, 4-band parametric equalizer, compressor, delay, input channel panning adjustmentMIC input uses digital gain adjustment48V phantom power (MIC channels can be independently turned on or off)Built-in 3 nine-band graphic equalizers (can be inserted into any of the 1-12 input channels)Input/output EQ ON/OFFStereo return inputQuick copy function for channel parametersEach channel has a multi-function menu, mute button, monitor buttonEach channel is equipped with a 100mm motorized fader, signal peak indicator (13 motorized faders)10 signal outputs (stereo main output, 2 SUB outputs, 6 AUX outputs)Output Processing - High and low pass filtering, 15-band parametric equalizer, compressor, delay, phaseSUB output (pre-fader, post-fader)Multi-track multi-mode digital recording functionDual-row 3-color 12-segment level meterBuilt-in sound card (MP3, PC direct music playback)4 quick scene recall modes, 20 scene storageUser parameter storage and recall (can be managed on PC)Built-in dual DSP effects processor7-inch 800*480 HD touch color screenFX pedal switch interfaceOptical input/outputMulti-OS control software (iOS system, Windows system) with Chinese/English switch displaySupports wired network adjustment (or external router wireless adjustment)User-definable layersParameter lock functionApplication RangeLive performance, auditorium, theater, conference room, lecture hall, multifunction hall, recording studio, etc.Technical Parameters:Input Mic/Line Input 1-12 balanced, XLR connectorsInput sensitivity (XLR/TRS): -60 to 10dB / -50 to 20dBElectronic gain: -32 to 10dB, 0.7 incrementMaximum input level (XLR/TRS): 19dB / 29dBInput impedance (XLR/TRS): >5kΩ / >10kΩTHD N at unity gain 0dB: 0.0005%-89dB (20–20kHz, direct output @0dB 1kHz)THD N at medium gain 30dB: 0.001%-75dB (20–20kHz, direct output @0dB 1kHz)Output voltage: 4V MAXHeadphone output: 7V 220ΩInput 4-band fully parametric EQ: 20–20kHz, ±12dB, Q value 0.3~15.0Band 1: selectable Lshelf, PEQBand 2: PEQBand 3: PEQBand 4: selectable Hshelf, PEQIndependent input delay: maximum 10ms
